Available in:
US
Ref:
OP20UL01UN12, OP20UL01UN23

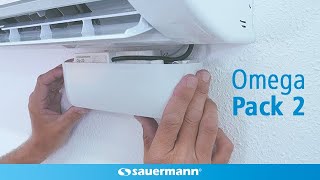

The compact, sleek design of the Omega Pack is the ideal choice for a convenient under the mini-split air conditioning unit installation. The integrated Si-20 mini condensate pump provides you with Sauermann's high performance pumping capacity with ultra quiet operation.

Technical Data sheet User manual Wiring diagram

Sleek Modern Design

Versatility to remove the Si-20 allowing for in-unit mounting

Ultra quiet operation

Left or right side mounting

Technical details

  • Max flow rate
    5 gph
  • Max discharge head
    33 ft
  • Max pressure
    46 feet
  • Max suction head
    10 feet
  • Insulation class
    Double insulation
  • Mains supply
    120V: (OPUL01UN12) / 230V: (OPUL01UN23)
  • Operation conditions
    120V: 50%: 3s ON - 3s OFF / 230V: 60%: 3s ON - 2s OFF
  • Protection
    IPX2
  • Master pack quantity
    6
  • Safety switch
    NC 8A resistive - 250 V
  • Detection
    Integrated detection unit
shadow
shadow

Pump Dimensions

  • Length
    Width
    Height
  • Pump
    5 3/8 inches
    1 1/2 inches
    1 1/2 inches
  • Duct
    12 7/8 inches
    2 1/4 inches
    2 1/2 inches
  • Packaging
    14 1/8 inches
    3 3/8 inches
    4 inches
shadow

SOUND LEVELS

  • at 3,3ft or 1m according to EN ISO3744 (dBA)
    22.00
shadow

Safety standards

  • UL/CSA by Intertek
shadow
1 Si-20 Piston Pump
1 Detection Unit - SI2958, 2' cable
2 Anti-Vibration Rubber Dampers
1 Clear PVC Tubing, 1/4" i.d. fitted with a Drain Safe Device
1 Power Cable, 5' (2 power wires, 2 safety wires)
1 Shell (2-part: backplate & cover)
1 Screws & plugs for affixing backplate
1 90 Deg Rubber Elbow, 19/32" i.d. x L 6"
1 90 Deg Rubber Elbow, 19/32" i.d. x L 6"
1 Vent Tube, 5/32" i.d. x L 2 15/16"
1 Split Connector, 1/2" - 10/16"
3 Double Wire Clamps
3 Tie Wraps
ISO 9001
TSCA certificate Sauermann
UL certificate Si-20
