Available in:
Europe
Ref:
SI82CE02UN23
The Si-82 centrifugal pump is designed to be easily installed in any environment. It is capable of evacuating up to 500l/h and suitable for air conditioning units and industrial refrigeration displays. It also tolerates charged, high temperature and acidic condensates (pH>2.5) produced by gas condensing boilers.
High performance, up to 5m vertically
High resistance

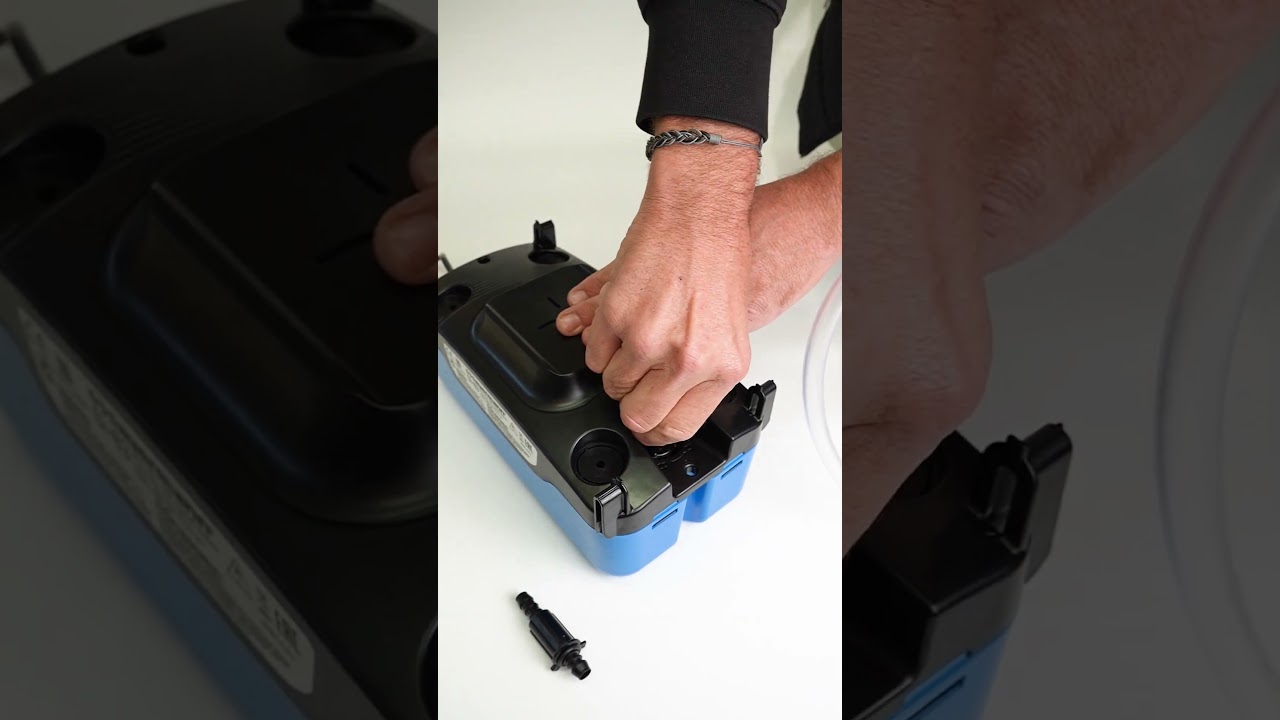

Easy installation, with plug-in power cord and reversible pump
Product info
Technical details
-
Max flow rate132 gph500 l/h
-
Max discharge head16 ft5 m
-
Max pressure5.4 m
-
Insulation classDouble insulation
-
Mains supply230V ~ 50Hz - 70W - 0.67A
-
Operation conditions30%: 3s ON - 7s OFF
-
ProtectionIP20
-
Max condensate temperature65 °C
-
Max condensate acidityph > 2.5
-
Tank volume2 L
-
Master pack quantity4
-
Safety switchNF 4 A resistive - 250V
-
DetectionIntegrated

Pump Dimensions
-
LengthWidthHeight
-
Pump279 mm130 mm174.5 mm
-
Packaging400 mm300 mm200 mm

SOUND LEVELS
-
at 3,3ft or 1m in application (dBA)45.00

Safety standards
-
CE
-
UKCA

ROHS and WEE directives
-
Compliant

Kit content
1 One-piece centrifugal pump with tank
1 Integrated barb end check valve (ext. diameter 10 mm or 3/8")
1 Plug-in power (2 m, European plug) & safety switch cord (1.5 m, bare ends)
1 Inlet hose: 5 m roll int. Ø 10 mm (3/8”)
1 Inlet rubber adapter int. Ø 15-20-24-32-40 mm (int. Ø 5/8"-3/4"-1"- 1"1/4 -1"½)
2 screws + 2 plugs
